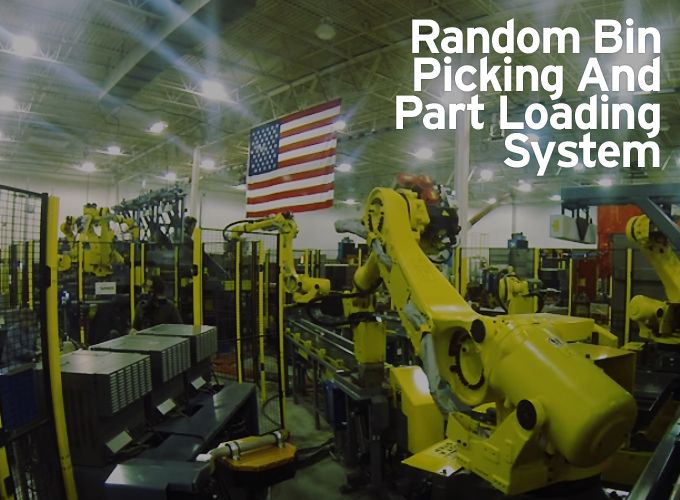

Random Bin Picking And Part Loading System

Contributed by | Midwest Engineered Systems Inc.



Our customer was faced with manually moving heavy parts from multiple bins and placing them onto a conveyor to begin a heat-treating operation. This labor-intensive job was automated to reduce labor injuries and to increase throughput by 10%-20%.

THE SOLUTION

Midwest Engineered Systems Inc. (MWES) provided a robotic random bin picking and part loading system (based on identifying the correct part, determining the location, and picking randomly placed parts from a bin using robotic automation and 3D vision systems) onto conveyors.

  • Bin Conveyors – CDLR bin handling conveyors, protected for fork truck access, were installed to provide a steady flow of bins full of parts to the pick stations.  This conveyor system also included egress of the empty bins without interrupting the bin picking sequence.
  • Robots – Three Fanuc robots were used with pneumatically actuated magnetic grippers for picking parts from bins.  Then a secondary pick position was implemented to optimize the part orientation for correct conveyor load configurations.  Fanuc has the advantage of Singularity Avoidance which makes programming of bin picking software easier.
  • Vision Systems- SICK PLB (Part Localization Bin) technology was mounted on a two-position slide for automated part locating and robot picking of two separate bin locations with one sensor.  The SICK PLB technology identifies primary picks (easily picking parts from the bin), and secondary picks (moving parts within the bin for better placement) which improves picking throughput.
  • Transfer Conveyors- Transfer CDLR conveyors feature an orientation station to optimize robotic pick and place of parts for secondary robotic loading operations.
  • Cell Controller- OLDI ControllLogix Transaction Manager for Oracle obtains recipe data.  Part tracking and recipe management of parts are processed through the system.  Cell interfaces were implemented for all peripheral machinery.
  • Process Testing & Install-    All equipment was setup in the MWES facility for production trial runs and testing before installation.  Final runoff testing was conducted at the customer’s site to ensure the system met all requirements.



IMPACT TO THE CUSTOMER

The final robotic bin picking system provided the customer with the following benefits:

  • Less than 2 Year Return on Investment
  • Safely moves heavy and sharp parts to and from bins
  • Removed staff from a dangerous and hot work environment
  • Increased productivity by 10% - 20%
  • Increased quality and temperature control due to steady flow of product to the heat treat process
  • System does not pick incorrect part numbers or debris
